Fire protection systems: the water risk that runs the full height of your building

Fire protection systems are the largest permanently charged water systems in most large buildings. Sprinkler mains, standpipes and fire pumps hold pressurized water 24 hours a day, and they can leak through corrosion, freezing or a damaged head like any other piping. A sprinkler leak is also a life-safety impairment, which is why monitored buildings treat fire protection as part of their water risk plan.

A water system that never turns off

Domestic plumbing gets used daily, so problems reveal themselves. Fire protection does the opposite. It sits charged and still, year after year, waiting for the one day it matters. Wet pipe sprinkler systems keep every branch line above your ceilings full. A standpipe system runs pressurized mains up the stair cores from the basement to the roof. Fire pumps and jockey pumps hold that pressure around the clock.

The stillness is the risk. Stagnant water corrodes steel pipe from the inside. Small drips at fittings go unnoticed in ceiling voids and locked rooms. And because the water column runs the full height of the building, a failure near the top puts every floor below it in the path.

Wet risers, dry risers and standpipes, in plain terms

A standpipe is the vertical fire main firefighters connect hoses to, floor by floor, usually inside a stairwell. In many markets the same pipe is called a riser. The distinction that matters for water risk is wet versus dry.

A wet riser, or wet standpipe, stays permanently filled with pressurized water so crews get water the moment they connect. Taller buildings use wet systems because pumping from the street cannot reach upper floors fast enough. A dry riser, or dry standpipe, stays empty until the fire department pumps water in through an inlet at street level. Dry systems are common in lower buildings and parking structures.

Wet systems carry a year-round leak risk because they are always full. Dry systems are not risk free. Valves weep, inlets get damaged and condensation collects at low points in the pipe.

How fire sprinkler systems leak

Corrosion. Steel pipe, water and trapped air corrode the system from the inside out. Wet pipe systems pit at trapped air pockets, and the first sign of a fire sprinkler leaking is often a pinhole drip at a fitting above a ceiling tile.

Freezing. Any wet pipe routed through an unheated space, a parking level, a loading dock, a stair tower, can split in a cold snap. Sprinkler system freeze protection (heat tracing, insulation, dry sidewall heads) only works if someone maintains it, and a frozen line bursts under full system pressure.

Damaged heads. A sprinkler head leaking slowly usually means a worn seal or corrosion at the head. A head sheared off by a ladder, a lift or renovation work releases dozens of gallons a minute until the system is isolated.

Dry pipe and pre-action failures. A dry pipe sprinkler system holds compressed air until a head opens. A pre-action sprinkler system adds a detection interlock before water enters the pipe. Both protect spaces where accidental discharge is unacceptable, like data rooms and archives, yet both have weak points: air compressors, condensation pooling at low points and corrosion at the air-water line inside the riser. A false valve trip fills the whole system with the water it was designed to keep out.

Fire pump rooms and fire water tanks

The fire pump room is the wettest room in the building that nobody visits. Pump packing glands drip by design. Test headers, relief valves and floor drains all handle water, and floor drains clog. Fire pump testing moves real volume: churn tests run weekly or monthly depending on the pump, and annual flow tests discharge hundreds of gallons a minute. A stuck relief valve or a blocked drain during a test can flood the room, with the pump controller and electrical gear right there.

Buildings without a reliable municipal supply add a fire water tank, tens of thousands of gallons stored on the roof or in the basement. Level controls fail, overflow lines run silently and tank fittings corrode. An overnight tank overflow can move more water than most pipe breaks.

Why monitored buildings catch fire system leaks early

A leak from fire protection is two events at once. It is a water leak, with everything that means for finishes, electrical rooms and the floors below. And it is an impairment of a life-safety system, which can trigger a fire watch and calls to the fire authority and your insurer. Every hour of delay counts twice.

Be clear on one thing: Eddy monitors and detects around fire protection systems. Eddy never controls, valves or shuts off any fire protection line. Fire code governs those systems. Automatic shutoff belongs on domestic water lines. Detection belongs everywhere water can escape.

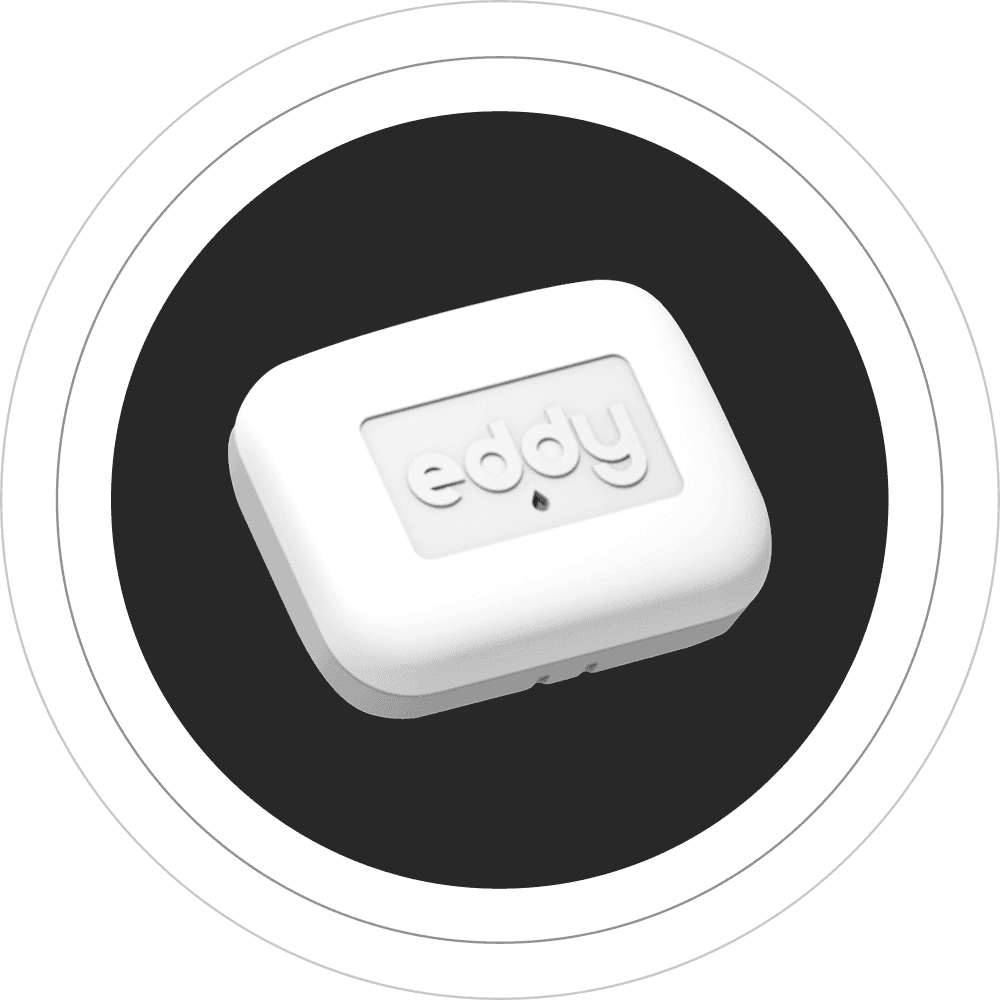

In practice that means wireless Eddy H2O leak sensors on the fire pump room floor, under riser drains and around fire water tanks, every device visible in the Eddy Dashboard with 24/7 monitoring behind it. When water hits a sensor at 2 a.m., the monitoring center escalates and calls your contacts within minutes, with operators working from your building's system map and business rules so the right person gets the right context. Eddy runs 140,000+ monitored devices across North America, and 59% of monitored events are contained before they become a claim.

That coverage matters most where fire systems are biggest: commercial towers and the hospitals, campuses and other institutional buildings where a single standpipe can run 30 stories.

Fire protection will always be full of water. That is the point. Putting detection around it protects the building without touching the fire lines. Talk to a leak-detection advisor.
