Smart valve and meter controller
Eddy Link
Eddy Link is a valve and meter controller that puts a building's mains, zones and risers on the Eddy program. It drives shutoff valves up to 18 inches and reads water meters that Eddy provisions and configures, in new construction or retrofit.
At a glance
- Valve size it drives
- Up to 18 inches
- Valves and meters provisioned and configured by Eddy
- One provider
- Meter and valve, valve only or meter only
- 3 setups
- Stays live through power outages
- Battery backup
See it work
Watch Eddy Link close a valve, automatically or on command.
Run a scenario to see a shutoff rule close the valve on its own, or your team close it remotely from the dashboard.

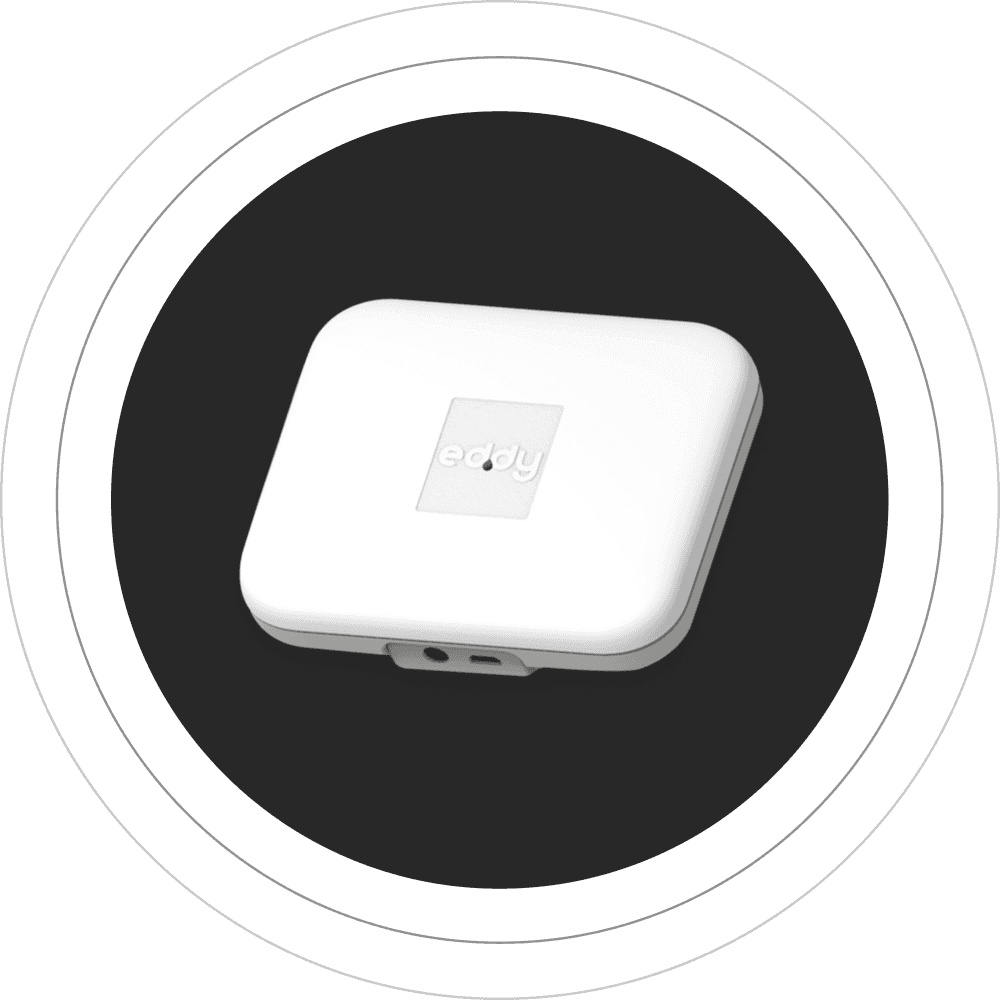

Valve and meter controller
Eddy Link
Mounts in the mechanical or riser room. It drives motorized shutoff valves on mains, zones and risers and reads their meters. Eddy provisions and configures every valve and meter it runs.
- Drives motorized shutoff valves up to 18 inches
- Valves and meters provisioned and configured by Eddy
- Internal backup battery
Run a scenario
Each scenario, step by step
Automatic shutoff
- A sensor on another floor reports water.
- A shutoff rule sends the close command to Eddy Link.
- Eddy Link drives the actuator and the valve closes.
- Operators call your property contacts through the escalation protocol.
Automatic shutoff is set per project. Some sites use human-coordinated isolation instead.
Remote shutoff
- Your team taps close in the Eddy dashboard.
- The command reaches Eddy Link through the building's gateway.
- The actuator turns and the flow stops.
The monitoring center can also close or reopen a valve at your request.
Restoring water
- The valve reopens and flow returns.
Eddy Link parts and specs
- Eddy Link
- Drives valves up to 18 inches (DN450) on 24 V DC, or 2 inches on USB power
- Valve and meter provisioned and configured by Eddy
- Runs meter and valve, valve only or meter only
- 915 MHz LoRaWAN with a LiPo backup battery. FCC certified
- Valve control
- 5-wire or 4-wire valve control
- Takes commands from rules, the dashboard and the monitoring center
- 4 to 20 mA pressure transmitter input, on request
What it does
Eddy Link connects a building's larger lines to the Eddy monitoring center. It drives motorized shutoff valves up to 18 inches, reads water meters and routes everything through 915 MHz LoRaWAN.
Every Eddy deployment includes a shutoff valve connected to Eddy Link. Eddy provisions and configures the valves and meters the Link runs, so they join detection and response on one program.
Drives motorized valves
5-wire or 4-wire control drives shutoff valves up to 2 inches (DN50) on USB power and up to 18 inches (DN450) on 24 V DC. Eddy provisions and configures each valve.
Reads the water meter
A meter cable connects to the meter's register, so odometer and volumetric flow data stream to Eddy. Eddy provisions and configures each meter.
LoRaWAN backbone
915 MHz long-range radio, fully compatible with other LoRaWAN smart-building devices on the same network.
Backup power
LiPo internal battery keeps the controller live during outages so a power loss does not become an alert gap.
Pressure-transmitter input
Optional 4–20 mA pressure transmitter input enables pressure monitoring through the same controller. Available on request.
Where it fits
Specify Eddy Link wherever a main, zone or riser needs shutoff control, metering or both, under one managed program for detection and response. Eddy provisions and configures the valves and meters it runs.
Mains, zones and risers
Shutoff control and metering on the lines too large for Eddy IQ, up to 18 inches.
New construction and retrofit
The same controller works on an active site and in a building already in operation.
Mixed utility deployments
Meter-only, valve-only or combined configurations on the same controller.
Pressure monitoring (on request)
Add a 4–20 mA pressure transmitter for line-level pressure data.
Installation
What an Eddy Link install looks like.

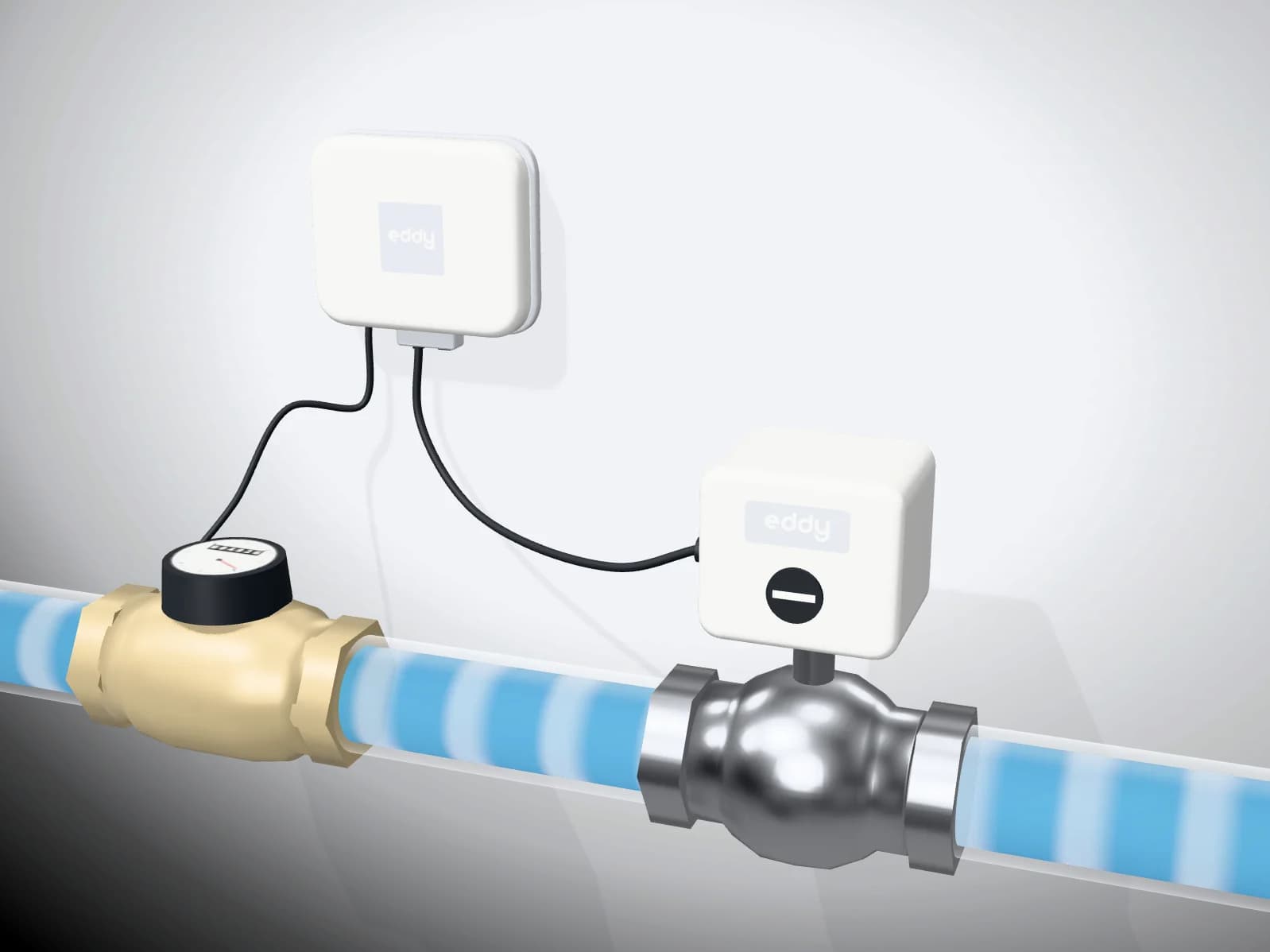

Eddy Link mounts near the valve and meter it controls. It drives the motorized valve, reads the meter and reports wirelessly over LoRaWAN. Eddy provisions and configures the valve and meter with it.
Swipe sideways to see the whole drawing
- Eddy Link wires to a motorized shutoff valve with 5-wire or 4-wire control. It drives valves up to 18 inches on 24 V DC, or up to 2 inches on 5 V USB.
- A meter cable connects it to the water meter's register. Eddy provisions and configures the valve and meter with the Link.
- A 4 to 20 mA pressure transmitter can be connected on request.
- It takes power from a standard 110 V receptacle, has a LiPo backup battery and reports wirelessly over two-way 915 MHz LoRaWAN, a signal that passes through concrete and steel, to the Eddy Gateway.
- The gateway connects to the Eddy cloud over Ethernet or LTE, which feeds the dashboard, alerts and a read-only API. The API can't open or close valves. Valve commands come from the dashboard, a rule or the monitoring center.
In the field
Valves under Eddy Link control.

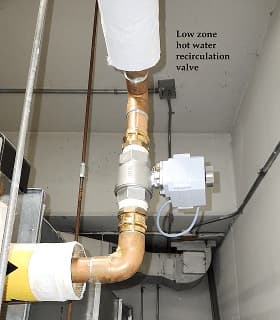

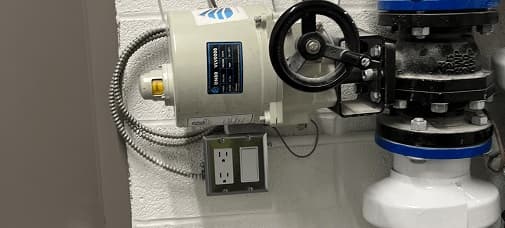

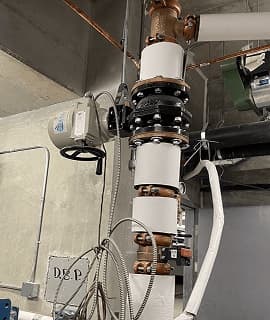

Motorized shutoff valves on mains, risers and recirculation lines, opened and closed from the dashboard or by rule.
Works with
Eddy Link is one part of a single Eddy program. Every device reports into the same dashboard and the same 24/7 monitoring center.
Eddy IQ
Covers ¾ and 1 inch lines with its own meter and valve, while Eddy Link covers the larger ones.
Eddy Link specifications
From the Eddy Link spec sheet. Download the full datasheet for your market.
| Valve sizes | Up to 18 inches (DN450) on 24 V DC, or 2 inches (DN50) on 5 V USB |
|---|---|
| Control wiring | 5-wire (forward, reverse, open, close, ground) or 4-wire |
| Provisioning | Provisioned and configured by Eddy |
| Commands | Automatic shutoff rules, the dashboard or the monitoring center |
| Connection | Meter cable to the meter's register |
|---|---|
| Provisioning | Provisioned and configured by Eddy |
| Data | Odometer and volumetric flow, for consumption and usage |
| Pressure input | 4 to 20 mA pressure transmitter, on request |
| Setups | Meter and valve, valve only or meter only |
|---|
| Protocol | LoRaWAN, 915 MHz (North America) |
|---|---|
| Antenna | High-efficiency internal antenna |
| Backup | LiPo internal battery |
| Control unit | 4.7 × 3.9 × 1.0 in |
|---|---|
| Mounting plate | 4.2 × 3.6 × 0.5 in |
| Certification | FCC |
Eddy Link FAQ
What valves can Eddy Link control?
Motorized shutoff valves up to 18 inches (DN450) on 24 V DC, or up to 2 inches (DN50) on 5 V USB power, with 5-wire or 4-wire control.
Who provides the valves and meters?
Eddy provisions and configures every valve and meter Eddy Link runs, so the whole assembly is set up, monitored and supported by one provider.
Can Eddy Link run with only a meter or only a valve?
Yes. It runs as meter and valve, valve only or meter only.
What happens in a power outage?
An internal LiPo battery keeps the controller live, so a power loss doesn't become an alert gap. Links are often installed on emergency building power as well.
How do shutoff commands reach Eddy Link?
Over Eddy's 915 MHz LoRaWAN network, through the building's gateway. A command can come from an automatic shutoff rule, the dashboard or the monitoring center.
